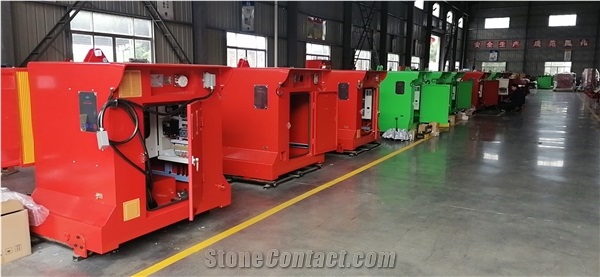

Wire Saw Machine For Granite Quarrying
FOB Price:$17000-25000
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Slate
After-Sale
Lead Time:
Within 25-30 days after receive deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Machinery Function Features
1. Being controlled by two sets of inverters and applying constant tension control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.
2.The machine is without phase request. It doesn't need to change or distinguish the power phase. The machine has the following protection functions wire broken protection, over-loading protection, open-phase protection, terminal limit, and so on.
3. The lateral moving and the rotation angle of the cutting head are controlled and driven by electric motor. There is photoelectric proximity switch installed on the cutting head for position limitation protection. This function enables the machine to work normally under harsh circumstance with moisture and dust.
4.The real-time parameters are displayed on the control platform, such as the set current of the main motor the current and the rotation speed of the main motor etc.it makes the operation and adjustment of the machine more convenient.
5.The machine can be operated manually and automatically.The manual and automatic functions can be shifted from each other. Under the automatic function, the machine can be unattended operated, and one worker is able to operate multiple machines.
2.The machine is without phase request. It doesn't need to change or distinguish the power phase. The machine has the following protection functions wire broken protection, over-loading protection, open-phase protection, terminal limit, and so on.
3. The lateral moving and the rotation angle of the cutting head are controlled and driven by electric motor. There is photoelectric proximity switch installed on the cutting head for position limitation protection. This function enables the machine to work normally under harsh circumstance with moisture and dust.
4.The real-time parameters are displayed on the control platform, such as the set current of the main motor the current and the rotation speed of the main motor etc.it makes the operation and adjustment of the machine more convenient.
5.The machine can be operated manually and automatically.The manual and automatic functions can be shifted from each other. Under the automatic function, the machine can be unattended operated, and one worker is able to operate multiple machines.
Technical Data
Parameters |
Unit |
TJZY-45G-8P |
TJZY-30G-8P |
TJZY-37G-8P |
TJZY-55G-8P |
TJZY-75G-8P |
Max. Wire Length |
m |
20-80 |
20-50 |
20-60 |
20-100 |
20-120 |
Dimension LxWxH |
mm |
2m*3+1m |
2m*3+1m |
2m*3+1m |
2m*3+1m |
2m*3+1m |
Flywheel Diameter |
mm |
Ø800 |
Ø800 |
Ø800 |
Ø800 |
Ø800 |
Walking Speed of Machine |
m/h |
0-60 |
0-60 |
0-60 |
0-90 |
0-90 |
Wire Saw Speed |
m/s |
0-30 |
0-30 |
0-30 |
0-30 |
0-32 |
Main Motor Power |
kw |
45(60HP-8P) |
30(40HP-8P) |
37(50HP-8P) |
55(75HP-8P) |
75(100HP-8P) |
Feed Motors Power |
kw |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
Cutting Distance |
mm |
1700 |
1560 |
1560 |
1900 |
2050 |
Total Weight |
T |
3 |
2.6 |
2.8 |
3.5 |
4.3 |
