Joborn Automatic Stone Polishing Line Machine For Granite SPG Series
FOB Price:$47500-82000
Technical description:
1.Suitable for surface polishing of granite.
2.Adopting PLC system and liquid crystal display screen menu offer intelligent control.
3.Establishing auto-dodging function and shape-memory function. Allocation the equip with preventing the grinding head mistakenly hit the belt, which has high automation operation and low labor the strength.
4.Configuration dedicated granite grinding head, high polishing efficiency and polishing quality, and greatly reduce the consumption of abrasive.
5.Material selection of sophisticated, reasonable design institutions, consummate processing technology, machine with strong rigidity and stable performance.
6.Grinding head, spindle box, slide and key bearings are used in the central automatic lubrication system.
7.The power movement of polishing heads using the narrow V belt with teeth set, greatly reducing movement consumption and enhanced the longer service lift.
8.The main beam adopts linear guide, swing front and back, good stability, void collision and center offset.
Parameters |
Unit |
SPG1200-12 |
SPG1200-16 |
SPG1200-20 |
SPG1200-24 |
Compressed air min. pressure |
bar |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Number of polishing heads/honing units |
nr |
12 |
16 |
20 |
24 |
Slab polishing speed |
m/min |
0~4 |
0~4 |
0~4 |
0~4 |
Approx. Weight |
Kg |
12000 |
16000 |
20000 |
24000 |
Machine overall width |
mm |
3300 |
3300 |
3300 |
3300 |
Beam crosswise movement speed |
mm/min |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Number of Dressing spindles |
nr |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Slabs max. processable length |
mm |
2800 |
2800 |
2800 |
2800 |
Conveyor belt width |
mm |
1300 |
1300 |
1300 |
1300 |
Slabs max. processable width |
mm |
1250 |
1250 |
1250 |
1250 |
Polishing heads/honing units motor power |
kw |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Slab infeeding sense power |
kw |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Cleaning motor power |
kw |
NO DATA |
NO DATA |
NO DATA |
NO DATA60 |
Machine overall length |
mm |
7000 |
8200 |
9500 |
10800 |
Polishing plates diameter |
mm |
240 |
240 |
240 |
240 |
Power of each dressing unit |
kw |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Diameter of abrasive-holding plates |
mm |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Belt advancement motor power |
kw |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Cooling water min. pressure |
bar |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Cooling water requirement |
L/min |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Machine overall height |
mm |
2200 |
2200 |
2200 |
2200 |
Compressed air requirement |
NL/min |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Slabs min. processable thickness |
mm |
10 |
10 |
10 |
10 |
Polishing slabs efficiency |
m2/h |
50 |
60 |
70 |
80 |
Conveyor system forward speed |
mm/min |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Slabs max. processable thickness |
mm |
50 |
50 |
50 |
50 |
Total installed electrical power |
kw |
125 |
155 |
190 |
220 |
Bridge travel power |
kw |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Number of abrasives for each plate |
nr |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
Sound pressure level |
dB |
NO DATA |
NO DATA |
NO DATA |
NO DATA |
PLC control system
The grinding head is pneumatic lifting, the maximum processing height of the grinding head is 50mm, the grinding head adopts uniform elastic grinding head;
Linear rolling guide rails are adopted for moving forward and backward. Adopt independent patented technology of spindle structure, plate shape detection device, automatic lubrication system;

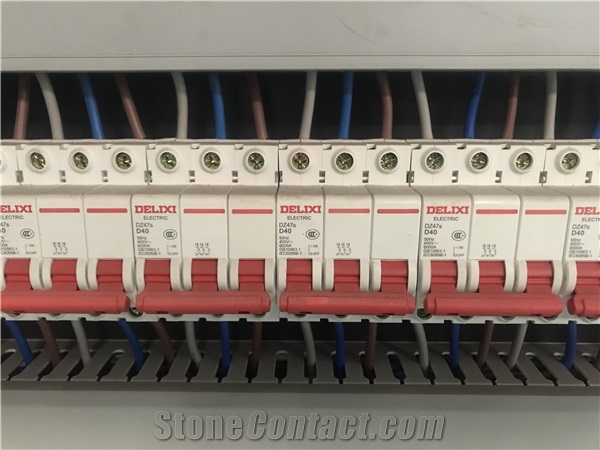

PLC computer operating system, LCD touch screen (10 inches) using Chinese and English operation interface, the use of imported and domestic first-line brands of electrical components, air components of Taiwan Yadeke;
The main motor of grinding head is 7.5kW-4P+11kW-4P;
