Multifunctional Hydraulic Stone Leftover Recycling Stamping Machine
FOB Price:$5000-8000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Stamping Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time:
15 days
Warranty:12 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features
Bestlink Multifunctional Hydraulic Stone Leftover Recycling Stamping Machine

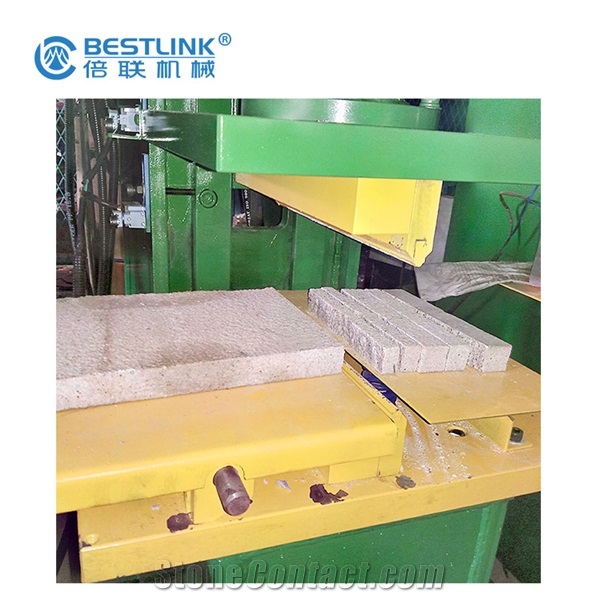

CP90 is specially designed for changing leftovers of slabs or tiles into different shapes with different moulds by hydraulic system inside; And it also has the function of splitting stone of long bar; Furthermore, it could be used for natural face splitting; The CP-90 machine have the output around 50m²~100m² per day,certainlly,if the operators have very good experience and skill,the yield will be much more,the machine have very compact structure,it is easily operated and maintained.

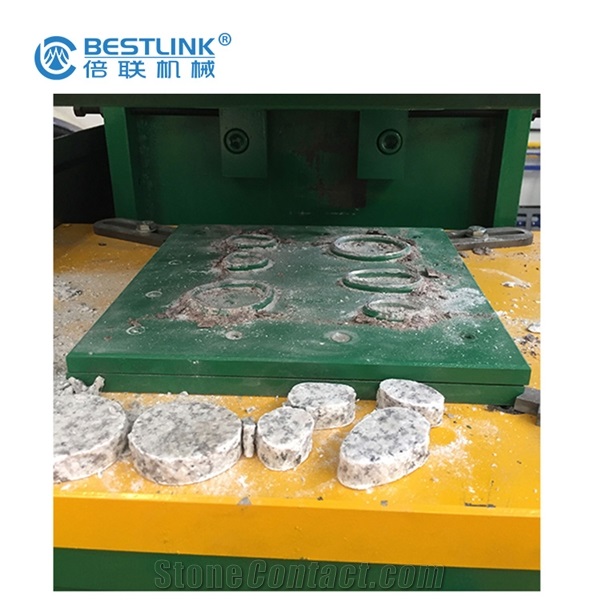

To process the waste slabs into difference design paving slabs for plaza,street,villa and living areas,which save the stone materials and protect the environment.it can press the thickness of stone tile from 1cm to 5cm with 40 figure moulds.
Tehcnial data for the most popular one CP-90:
We can provide 2 types of this machine, they differ in the stamping power. One is 20T, the other is 40T.
They can process different slab size, one is 30cm*30cm*3cm, the other is 30*30*5cm.
CP90 is specially designed for changing leftovers of slabs or tiles into different shapes with different moulds by hydraulic system inside; And it also has the function of splitting stone of long bar; Furthermore, it could be used for natural face splitting; The CP-90 machine have the output around 50m²~100m² per day,certainlly,if the operators have very good experience and skill,the yield will be much more,the machine have very compact structure,it is easily operated and maintained.
To process the waste slabs into difference design paving slabs for plaza,street,villa and living areas,which save the stone materials and protect the environment.it can press the thickness of stone tile from 1cm to 5cm with 40 figure moulds.
Tehcnial data for the most popular one CP-90:
We can provide 2 types of this machine, they differ in the stamping power. One is 20T, the other is 40T.
They can process different slab size, one is 30cm*30cm*3cm, the other is 30*30*5cm.
Technical Data
Parameters |
Unit |
CP90-70T |
Machine overall height |
mm |
2000 |
Splitting power |
T |
70 |
Max. processing thickness |
mm |
100 |
Machine overall length |
mm |
1000 |
Max. processing width |
mm |
350 |
Machine overall width |
mm |
1200 |
Approx. Weight |
Kg |
1200 |
Main motor power |
kw |
7.5 |
