Stone Continuous Calibrating Machine For Marble/ Granite/Quartz
FOB Price:$20000-23000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
60days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features

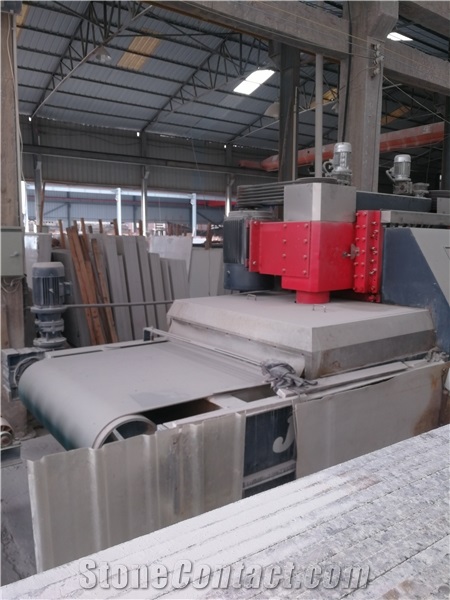

This machine adopts the structure of Long men type, good rigidity, conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate, make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
Technical Data
Parameters |
Unit |
SAC-880 |
SAC-1080 |
SAC-1280 |
Water requirement |
m3/h |
8/16/24 |
8/16/24 |
8/16/24 |
Diameter of calibrating head |
mm |
880 |
1080 |
1280 |
Standard voltage |
Volt |
380 |
380 |
380 |
Machine overall length |
m |
4.4/6.5/8.7 |
4.9/7.3/9.9 |
5.5/8.5/11.4 |
Machine overall height |
m |
2.1 |
2.4 |
2.4 |
Number of calibrating units |
nr |
2/4/6 |
2/4/6 |
2/4/6 |
Minimum workable thickness |
mm |
10 |
10 |
10 |
Machine overall width |
m |
1.6 |
2 |
2.2 |
Z axis stroke |
mm |
90 |
90 |
90 |
Maximum workable thickness |
mm |
60 |
60 |
60 |
Maximum workable width |
mm |
850 |
1050 |
1250 |
Power of each calibrating unit |
kw |
18.5(6P) |
22(6P) |
22(8P) |
