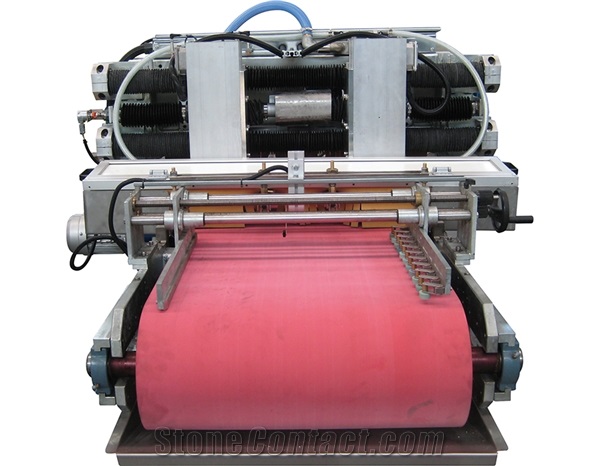

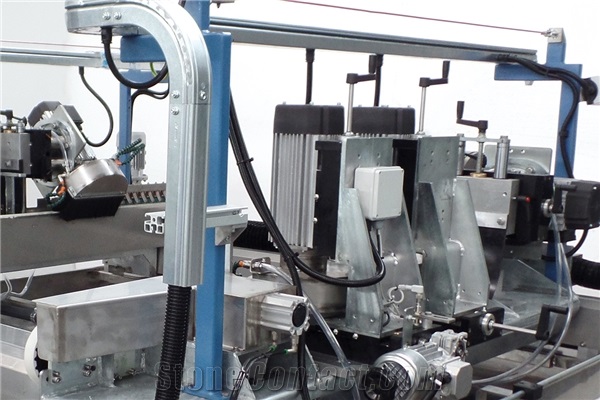

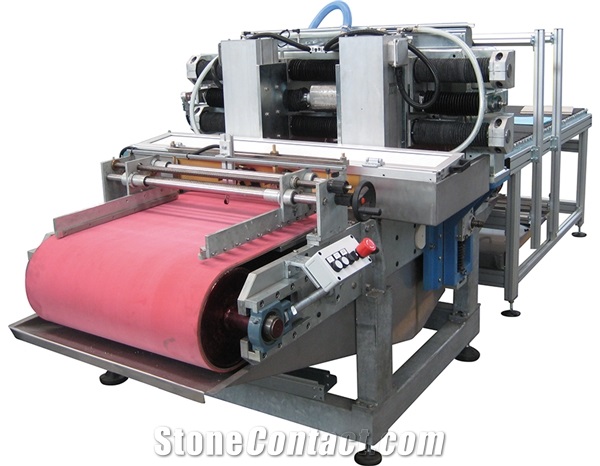

MRY - AUTOMATIC KERF CUTTING MACHINE FOR VENTILATED FACADES
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Machinery Function Features
MRY machine makes incisions on the board of materials of gres porcelain, agglomerated, granite, marble and terrace allowing the insertion of supporting clips for the ventilated facades.
Technical Data
Parameters |
Unit |
MRY |
Conveyor system forward speed |
m/min |
1,5-6 |
Approximate weight |
Kg |
2300 |
Machine length complete with roller bench |
mm |
3200 |
Maximum thickness |
mm |
50 |
Disc diameter |
mm |
300 |
Minimum strip width |
mm |
100 |
Installed electrical power |
kw |
15 (1400 R.p.m) |
Maximum strip width |
mm |
600 |
Machine width (W) |
mm |
2100 |
Machine height (H) |
mm |
1550 |
Belt width |
mm |
700 |
