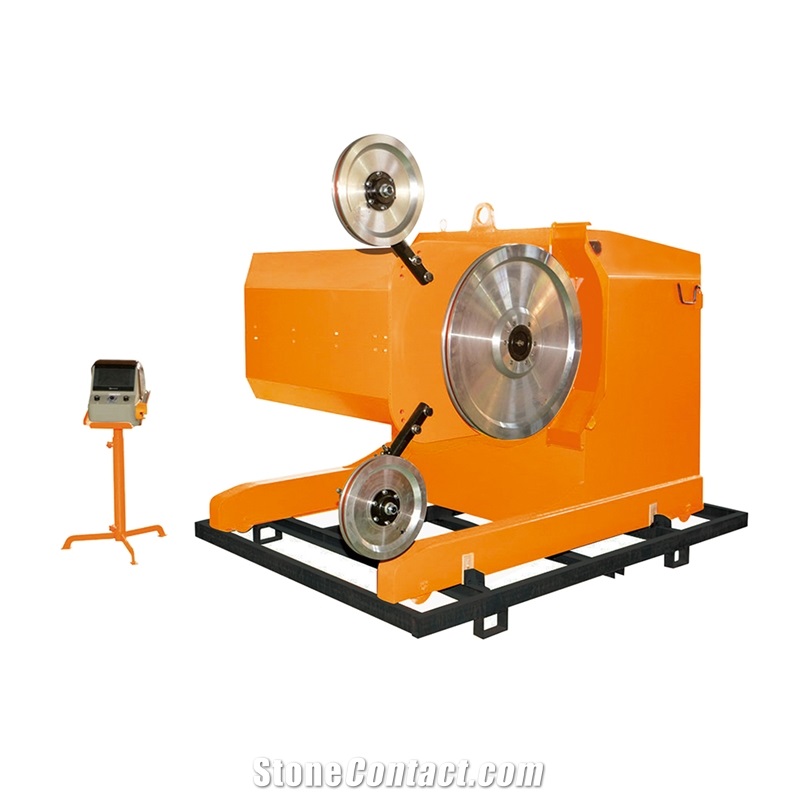

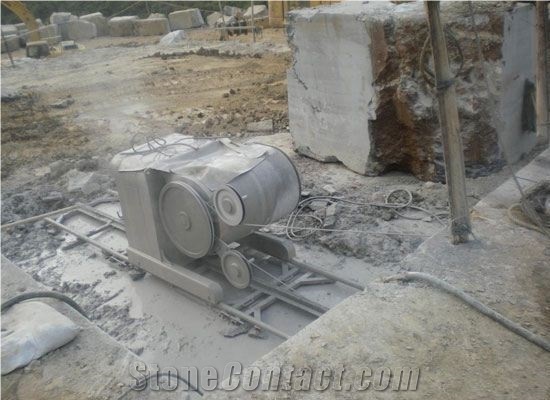

Diamond Wire Saw Cutting Machine For Mining Block Stone Quarry
FOB Price:$15000-25000
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Lead Time:
15~30 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
Xiamen Port- China
Delivery Details: FOB,CFR,CIF,EXW
Payment :
More
Machinery Function Features
At present, wire saws can be widely used in the mining of various hardness stones such as granite and sandstone. The product quality is getting higher and the cost is getting lower and lower.
Machine Features
1. Using frequency converter + PLC control, the motor can be stepless speed regulation.
2. Using digital communication, the control circuit is simple and the failure rate is low.
3. Control panel is a fixed HML screen. It's waterproof and dust-proof, which also has dynamic display images and working information, like input voltage, cutting data, and working time.
4. Intelligent fault detection of equipment system, alarm protection and prompt solutions, timely treatment, User-friendly.
5. Using PID technology, the machine can be adjust feeding speed automatically according to the changing load of the main motor, which keeps the wire tension constant and extend the wire life span.
Application

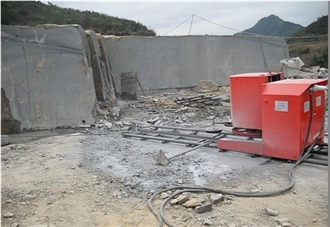

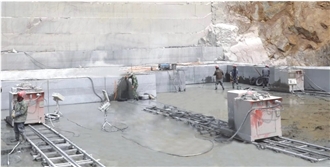

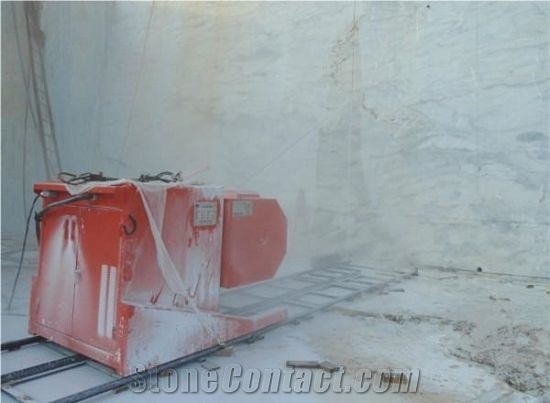

1. For granite, marble and other kinds of stone quarry
2. Mine with varied vein

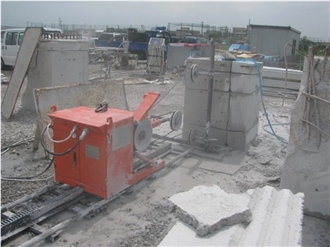

3. Big blocking trimming
4. Concrete cutting
Machine Features
1. Using frequency converter + PLC control, the motor can be stepless speed regulation.
2. Using digital communication, the control circuit is simple and the failure rate is low.
3. Control panel is a fixed HML screen. It's waterproof and dust-proof, which also has dynamic display images and working information, like input voltage, cutting data, and working time.
4. Intelligent fault detection of equipment system, alarm protection and prompt solutions, timely treatment, User-friendly.
5. Using PID technology, the machine can be adjust feeding speed automatically according to the changing load of the main motor, which keeps the wire tension constant and extend the wire life span.
Application
1. For granite, marble and other kinds of stone quarry
2. Mine with varied vein
3. Big blocking trimming
4. Concrete cutting

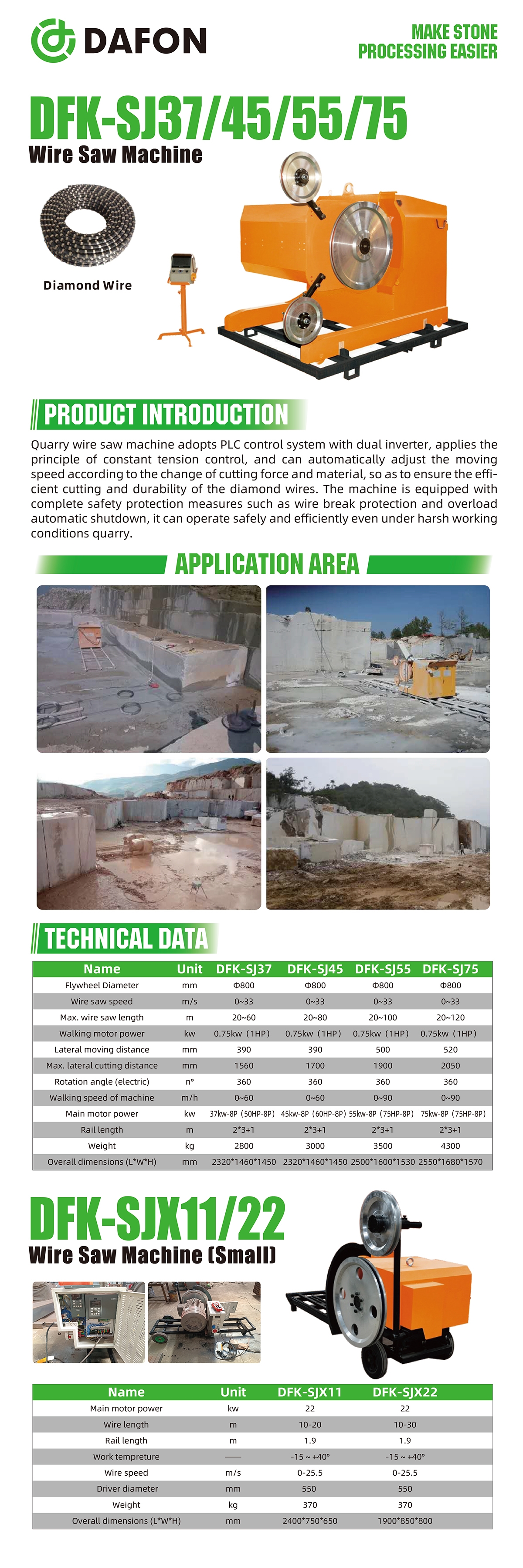

Technical Data
Parameters |
Unit |
DFK-SJ37/45/55/75 |
Power Supply |
V/Hz |
380 |
Feeding Speed/Fixed Speed |
m/s |
0-60 |
Main Flywheel Diameter |
mm |
Φ800mm |
Length of rails |
m |
2m*3+1m |
Main Motor Power |
kw |
45 |
Feed Motors Power |
kw |
0.75 |
Motor Flywheel Unit Rotation |
° |
360 |
Dimension LxWxH |
mm |
2350*1460*1450 |
Total Weight |
Kg |
3.0T |
Wire Saw Speed |
m/s |
0-30 |
Max. Wire Length |
m |
20~80 |
Max. cutting width |
mm |
1700 |
