Two Heads Calibrating Machine

FOB Price:$11760-12240

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 15 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Quanzhou Xinhaineng Machinery Co,. Ltd.

Quanzhou Xinhaineng Machinery Co,. Ltd.
New Haineng

ChinaChina idicon

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine|

Contact supplier

You may also like
SXA-100L Automatic Gantry Calibrating Machine
SXA-100L Automatic Gantry Calibrating Machine
HLYD 1200/3 - HLYD 1600/4 -HLYD 2000/6 Multi-Disc Calibrating Stone for Slab Polishing Line
HLYD 1200/3 - HLYD 1600/4 -HLYD 2000/6 Multi-Disc Calibrating Stone for Slab Polishing Line
Four Heads Calibration Machine
Four Heads Calibration Machine
Stone Continuous Calibrating Machine For Marble/ Granite/Quartz
Stone Continuous Calibrating Machine For Marble/ Granite/Quartz
Wisdom Automatic Continus Calibration Machine For Marble Granite
Wisdom Automatic Continus Calibration Machine For Marble Granite
  • Overview
  • Components
  • Video
Machinery Function Features
This machine adopts the structure of portal n type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
Technical Data
Parameters
Unit
ANH-2-600
ANH-2-800
Speed of conveyor belt
m/min
0.4-3
0.4-3
Power of main motor
kw
11kw/2pcs
11kw/2pcs
Water requirement
m3/h
2
2
Machine overall height
mm
1800
2000
Maximum workable thickness
mm
80
80
Machine overall width
mm
1300
1300
Machine overall length
mm
3410
3750
Maximum workable width
mm
600
800
Total power
kw
27.49
27.49
Approx. Weight
Kg
2600
2700

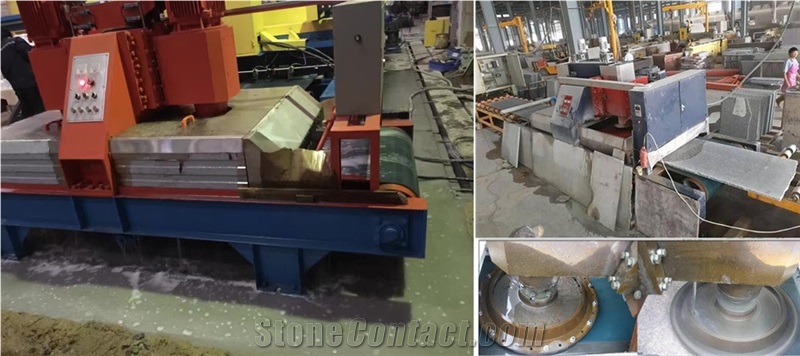

Processed Stone Photos
  • Processed Stone Photos

Components
  • limit switch

    limit switch

    ¥Payment Required
Consumables
  • Diamond Segments

    Diamond Segments
